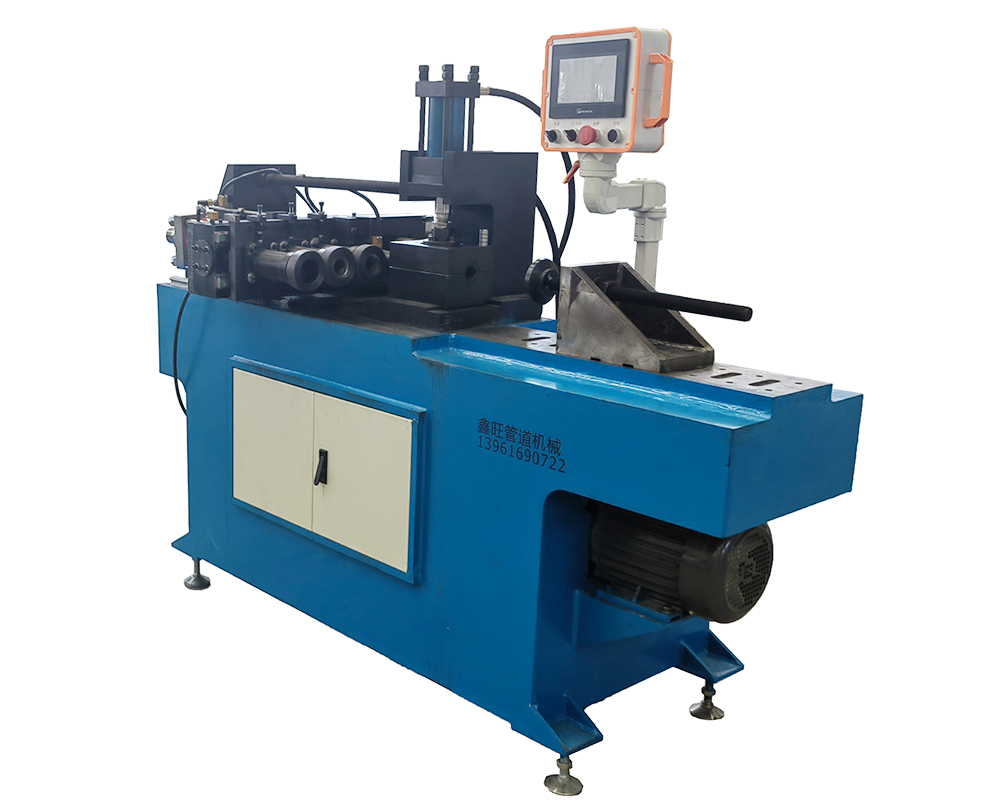

Contracted Pipe Machine
Equipment Overview
1) Suitable for spray pipe forming and tapping.
2) Manufacturing Factory: Jiangyin Xinwang Machinery Co., Ltd
3) Suitable for processing materials and sizes: Spray pipe ≥ 100mm
4) Supply content: Contracted Pipe Machine
Function Description
The Contracted Pipe Machine is a product independently developed by our company based on the absorption of domestic and foreign technologies. It is controlled by PLC, driven by hydraulic pressure, and has a touch screen to select the working mode. The internal adjustment is simple, and the mobile foot switch has an automatic start function, making the operation safer and more reliable. It has a counting function, the mold is made of alloy material, the overall performance is stable, and the molding efficiency is high, making it an ideal equipment for the pipe processing industry.

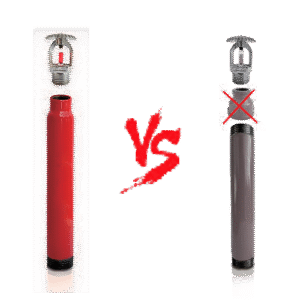

Sprinkler pipe
Main Technical Parameters
| Maximum shrinkage capacity: | 40×2.0t A3 |
| Shrinkage length: | ≧100mm |
| Shrinking speed: | 100mm/S (adjustable) |
| Clamping stroke: | 65mm |
| Machine appearance: | 2600×550×1300 |
| Random spare parts list: one set of fixtures (on installed equipment), one set of molds (on installed equipment), and one screw tap (on installed equipment) | |
