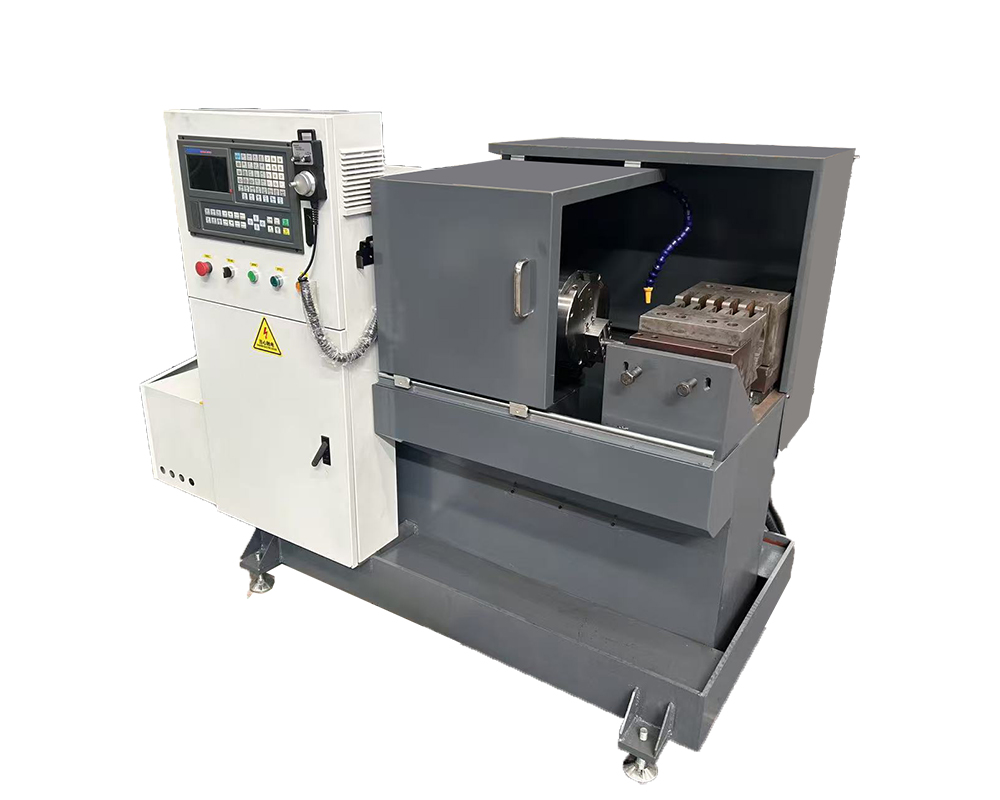

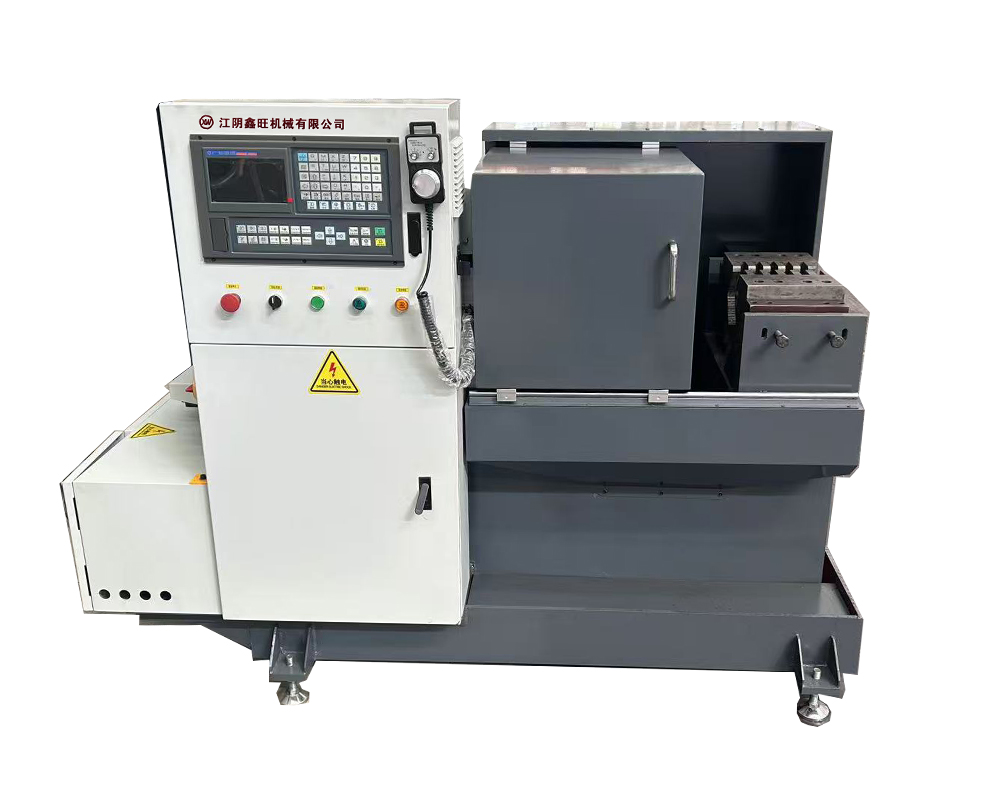

CNC Threading Machine

Please enable JavaScript in your browser to complete this form.

PRODUCT INFORMATION

Model Number: XWNCTS100 XWNCTS200 XWNCTS300
Processing Range: 2 inch - 4 inch(60mm-114mm) 2 inch - 8 inch(60mm-219mm) 2 inch - 12inch(60mm-323mm)

PRODUCT PARAMETERS

Brand Name: XinWang Place of Origin: China
Thread Varieties: PT NPT CNC System: Huazhong HNC8
Product Name: CNC Threading Machine Application: Pipe Threading
Rated Power: 10KW Spindle Servo Motor Power: 5.5KW
Effective Stroke of Slide in Z Direction: 100mm Maximum Stroke of Cutter Head in X Direction: 100 mm
Slide Feed Speed: CNC Speed Regulation Cutter Head Lateral Feed Speed: CNC Speed Regulation
Repeat Positioning Accuracy in X Direction: 0.01 Repeat Positioning Accuracy in Z Direction: 0.015
Spindle Speed: 400r/min (servo speed regulation) Equipment Weight: 1800KG
Equipment Dimensions(L*W*H): 1800mm*800mm*1250mm Delivery Time: 30 working days after received your payment

Product Overview

The CNC Threading Machine from Jiangyin XinWang Machinery Co., Ltd. is a cutting-edge solution for high-precision threading applications. Designed with advanced CNC system control and servo motor technology, this machine ensures exceptional performance, accuracy, and reliability for various pipe threading tasks.

Technical Advantages

  1. CNC System Control
    • Themachine is equipped with a CNC system to ensure precise control over the threading  This allows for easy adjustment of parameters such as threading length, speed, and torque, making it suitable for different pipe sizes and materials.
  2. Servo Motor Precision
    • Theuse of servo motors provides high-speed operation, smooth acceleration/deceleration, and excellent dynamic  This ensures minimal wear and tear while maintaining consistent thread quality.
  3. High Efficiency
    • Theservo-driven system enables fast setup and operation, significantly improving production
  4. Energy Efficiency
    • Withlow power consumption and optimized energy usage, the machine reduces operating costs and contributes to environmental
  5. Versatility
    • Theintelligent threading machine supports a wide range of pipe diameters (60mm to 323mm) and materials, including stainless steel pipes, galvanized pipes, and fire protection

Key Features

  • Automatic Clamping and Release: Ensures secure fixation of pipes during
  • Adjustable Height: The machine frame can be adjusted to accommodate different pipe
  • Quick Tool Change: No need to replace tools for different pipe sizes, reducing
  • Durable Construction: Built with high-quality materials to ensure long-lasting performance in demanding industrial

Application Fields

  • Stainless Steel Pipe Processing
  • Galvanized Pipe Manufacturing
  • Fire Protection Pipe Production
  • Watersupply And Drainage Systems
  • Pipeline Construction and Maintenance

Why Choose Our CNC Threading Machine?

  • Precision:High-precision threading ensures perfect screw thread
  • Reliability:Robust design and advanced CNC control system guarantee consistent
  • Cost-Effective:Low energy consumption and minimal maintenance reduce operational
  • GlobalReach: Used by customers worldwide, including Southeast Asia, Europe, and
