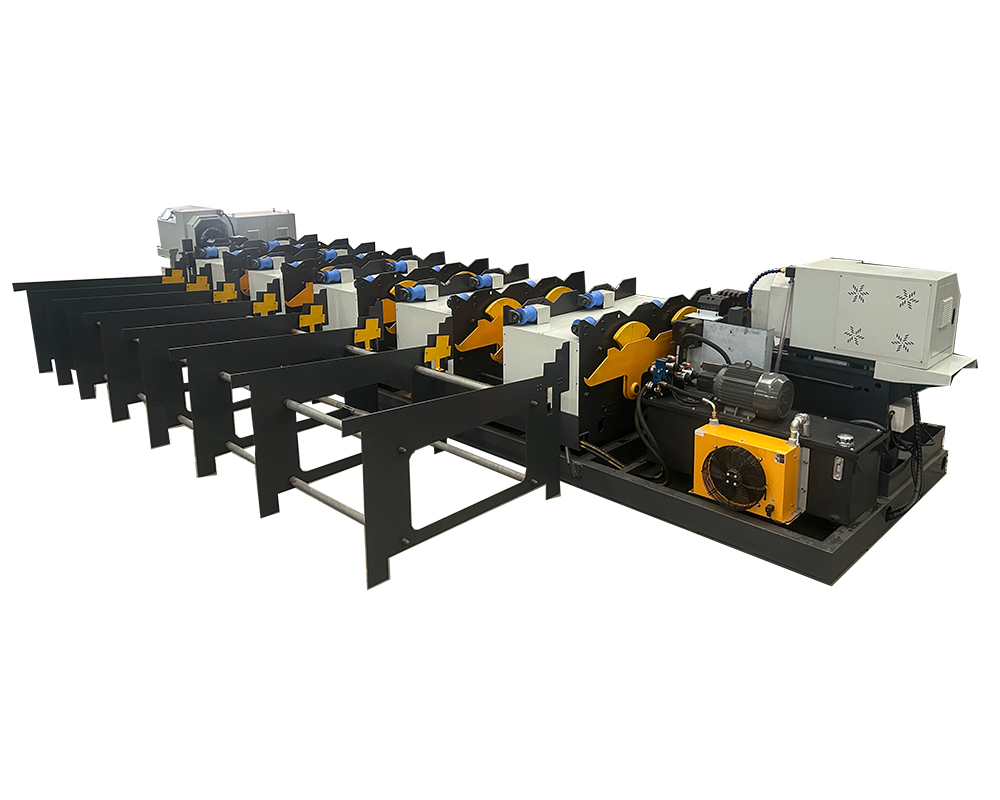

1200mm-6000mm Cnts Series automatic Pipe Threading Machine

Please enable JavaScript in your browser to complete this form.

Product Information

Model Number: CNTS-50A CNTS-65A CNTS-80A CNTS-100A
Processing Range: ½ inch - 2 inch

21mm-60mm

 ½ inch - 2½ inch

21mm-76mm

 ½ inch - 3 inch

21mm-89mm

 ½ inch - 4 inch

21mm-114mm

Product Parameters

Brand Name: XinWang Pipe Length Range: 1200mm-6000mm
Place of Origin: China Rated Power: 20KW
HMI(Human Machine Interface): Chinese,English Equipment Weight: 6400KG
Product Name: Automatic Threading Machine Hydraulic Pressure: 3.5MPa
Rated Voltage: 380V 50HZ Thread Varieties: PT NPT
Equipment Dimensions(L*W*H): 8400mm*4000mm*1600mm Supply Ability: 20 pcs per month
Spindle Servo Motor Power: 5.5KW*2 Delivery Time: 45 working days after received your payment
Application: Pipe Threading Packaging Details: Wrap with stretch film first, then secure in container
Minimum Order Quantity: 1pcs Payment Terms: T/T

Product Overview

The double-head threading machine of Jiangyin Xinwang Machinery Co., Ltd. is a threading equipment with a relatively high degree of intelligence and automation. Its core is to use an intelligent threading machine as the head and combine it with a translation and positioning mechanism to form a complete threading production line. The following is a summary of the equipment's working process, technical features, and application scenarios:

Working Process

  1. LoadingThe operator places the steel pipe on the loading mechanism, and the steel pipe is transferred to the positioning area of the equipment through the loading mechanism.
  2. One-end positioningThe equipment automatically positions one end of the steel pipe to ensure the stability of the steel pipe during the threading process.
  3. Translation and threadingAfter positioning, the steel pipe is moved to the processing position of the intelligent threading machine through the translation mechanism, and the equipment performs threading on one end of the steel pipe.
  4. The other end positioningAfter threading one end, the steel pipe is translated again, and the equipment positions the other end of the steel pipe.
  5. Threading the other endAfter positioning, the steel pipe is moved to the processing position of the intelligent threading machine, and the equipment performs threading on the other end of the steel pipe.
  6. UnloadingAfter threading is completed, the steel pipe leaves the equipment through the unloading mechanism, finishing the entire processing process.

Technical Features

  1. Intelligent threading machineAn intelligent threading machine is used as the core head, combined with PLC control and servo motor technology to ensure high precision and efficiency during the threading process.
  2. Translation and positioning mechanismThe equipment is equipped with a translation mechanism and a positioning mechanism, which can automatically complete the positioning and translation of both ends of the steel pipe, reducing manual intervention.
  3. High degree of automationThe entire threading production line realizes full automation from loading to unloading, greatly improving production efficiency.
  4. Efficient processingThe intelligent threading machine driven by a servo motor can quickly complete threading tasks and is suitable for processing steel pipes of various diameters and materials.
  5. Precise controlThrough the PLC control system, the threading length, speed, and torque can be precisely adjusted to ensure the consistency and reliability of the thread quality.

Application Scenarios

  1. Steel pipe processing industryIt is suitable for threading various steel pipes such as stainless steel pipes, galvanized pipes, and fire-fighting pipes.
  2. Construction industryIt is widely used in building pipeline projects such as fire-fighting pipes, water supply pipes, and drainage pipes.
  3. Industrial manufacturingIt is used for prefabrication of steel pipes to meet the needs of industrial pipeline installation and maintenance.
  4. Prefabricated buildingsIn prefabricated buildings, the double-head threading machine can quickly complete the threading of both ends of steel pipes, improving construction efficiency.

Advantages

  1. High efficiencyThe automated production line greatly improves production efficiency and reduces the time cost of manual operation.
  2. PrecisionThe combination of the intelligent threading machine and PLC control ensures high precision in thread processing, avoiding the errors of traditional manual threading.
  3. Labor-savingThrough automated operation, the dependence on a large number of manual workers is reduced, lowering labor costs.
  4. Strong applicabilityIt supports the processing of steel pipes of various diameters and materials, meeting the needs of different scenarios.

The double-head threading machine of Jiangyin Xinwang Machinery Co., Ltd., with its efficient automation ability and precise threading technology, is widely used in the fields of steel pipe processing and building pipelines and is one of the indispensable equipment in modern industrial production.
